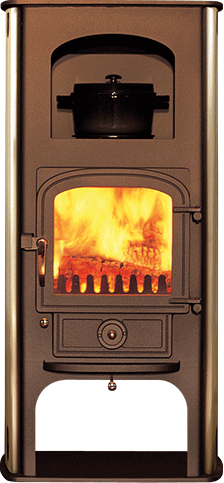

Pioneer Oven

Admin User 24/10/2019 09:49

From £2352 inc VAT

The Pioneer Oven is a highly efficient super clean burning stove specifically designed for freestanding situations. The warming oven will cook casseroles and bake potatoes, whilst the large hotplate is ideal for boiling a kettle or keeping your coffee warm. The convection casing reduces rear and side surface temperatures allowing the stove to be positioned closer to wood and glass.

Features

  • 6kW heat output.
  • One double-glazed door that gives an uninterrupted view of the flames.
  • Clearview hot air-wash system for clean burning without fuss or pampering.
  • Independent up draft and down draft air distribution system for maximum response and control.
  • Refractory lining, promoting super clean combustion.
  • Multi-fuel grate, for easy lighting and rapid response.
  • Warming oven for cooking casseroles, baked potatoes, etc.
  • Hotplate surface for coffee pot or kettle.
  • Rotary grate for easy riddling.
  • Convection casing for a lower surface temperature, allowing closer installation to vulnerable surfaces. 200mm to the sides and 250mm to the rear.
  • Heavy steel construction — welded inside and out for durability and long life.
  • All “wear and tear” stove parts are easily replaceable making maintenance comparatively effortless.
  • Solid brass removable door handle and knobs.
  • Stainless steel ash pan for long life and easy ash removal.
  • Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
  • Built in fuel store for logs or kindling.
  • Takes up to 250mm (10 inch) logs.
  • 3yrs Manufacturers Guarantee

Specifications

Heat Output 1.5kW to 6kW
Weight 170Kgs
Flue Outlet 150mm (6")
Boiler Options None
Max Log Length 250mm (10")

Options

  • Available in a range of seven colours to complement your decor.
  • Satin chrome door handles and fittings.
  • Optional top or rear flue outlet.
  • Base plate to provide additional floor protection.
  • External air box, for a direct connection to an outside air supply.
  • Smoke Control Kit (cannot be retro fitted)
  • Double Rear Heat shield for further reducing clearance to combustibles behind the stove to 125mm.

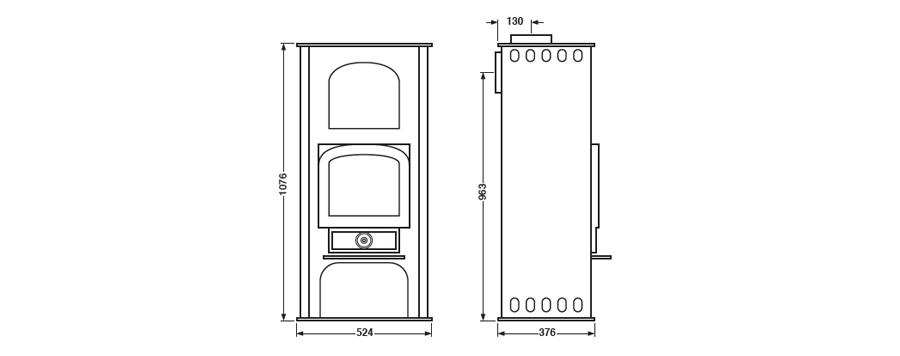

Technical Diagrams

Pioneer Oven
Pioneer Oven
