Clearview 650
24/10/2019 10:00

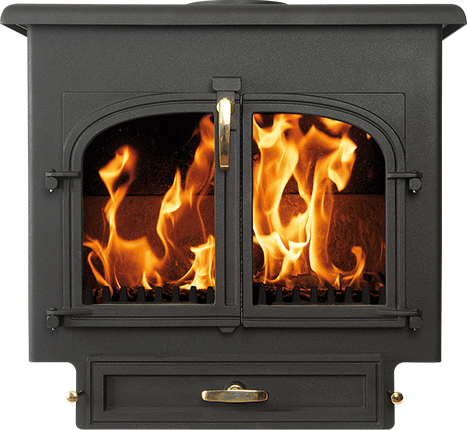

Flat Top
Low Canopy

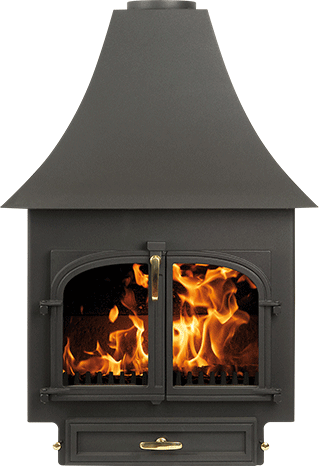

High Canopy

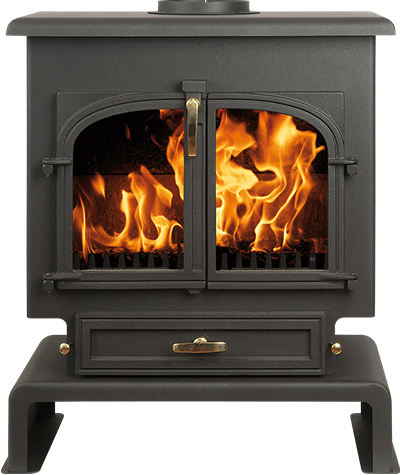

Flat Top on 177mm (7") Plinth

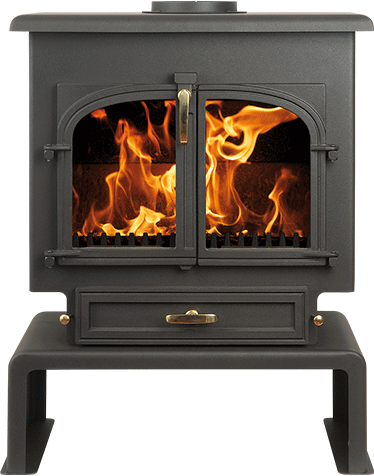

Flat Top on 254mm (10") Plinth
From £2088 inc VAT
This is the second largest stove in our range. It has exactly the same classic proportions and all of the features of the 750 but is slightly smaller and has a lower heat output.
Features
- 12kW heat output.
- Two large Clearview double glazed doors that give an impressive view of the flames.
- Clearview hot air-wash system for really clean burning without fuss or pampering.
- Independent up draft and down draft air distribution system for maximum response and control.
- Refractory lining, promoting clean combustion.
- Multi-fuel grate, for easy lighting and rapid response.
- Heavy steel construction — welded inside and out for durability and long life.
- Solid brass knobs and door handles.
- All “wear and tear” stove parts are easily replaceable making maintenance comparatively effortless.
- Cast aluminum and stainless steel ash pan for long life and easy ash removal.
- Adjustable levelling bolts, for easy adjustments on uneven hearths.
- Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
- Large hotplate surface for coffee pot or kettle on the Flat Top and Low Canopy version.
- Takes up to 450mm (18 inch) logs.
- 3yrs Manufacturers Guarantee
Specifications
| Heat Output | 2.5kW to 12kW |
| Weight | 154 - 165Kgs (without boiler) |
| Flue Outlet | 175mm (7") |
| Boiler Options | 10,000Btu (Domestic) Connections A & D 27,000Btu (Baffle) Connections A, B, C & E 40,000Btu (Wrap-around) Connections A, B, C & E |
| Max Log Length | 450mm (18") |
Options
- Available in a range of seven colours to compliment your decor.
- Satin chrome door handles and fittings.
- Optional top or rear flue outlet.

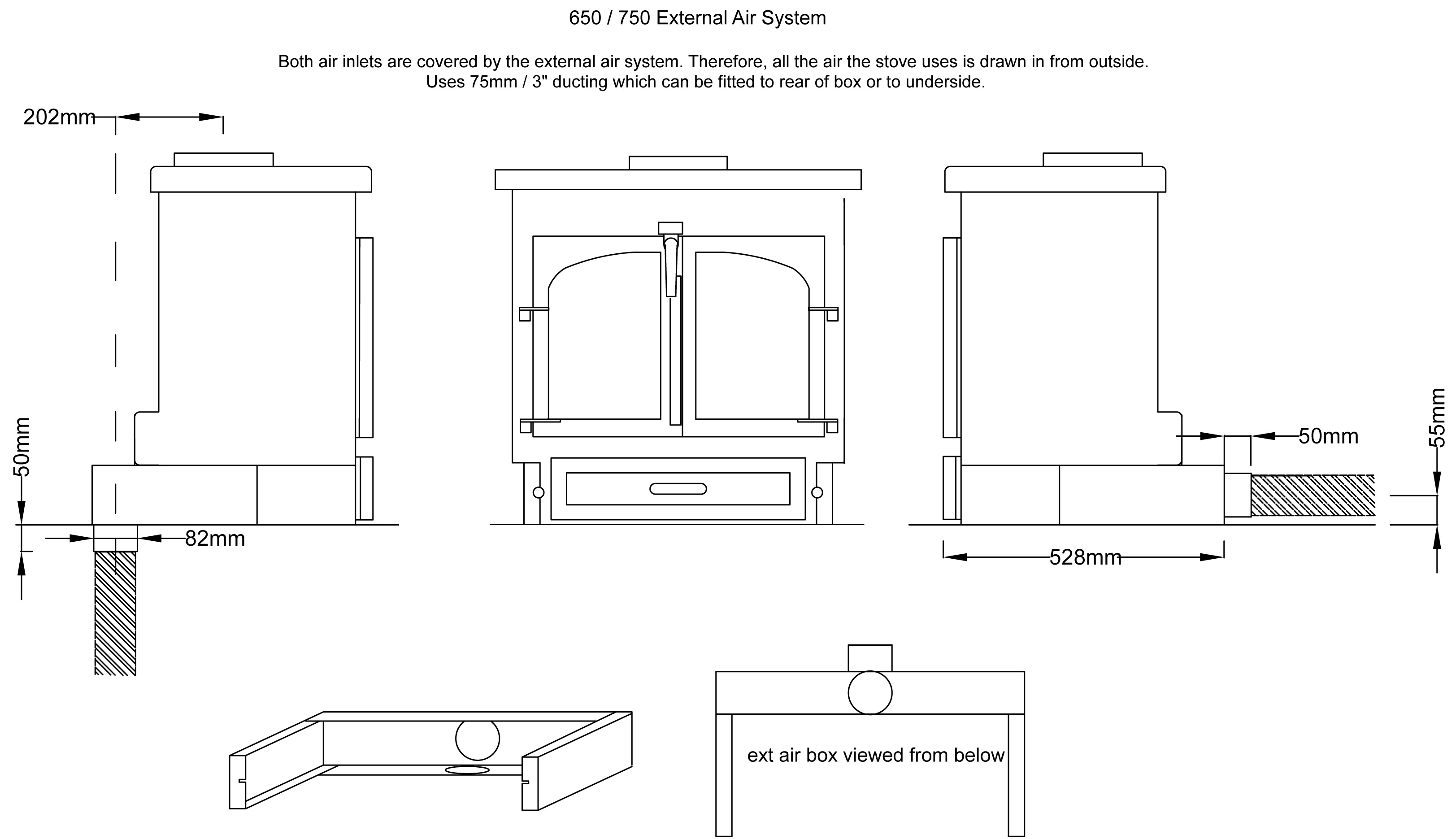

- External air system, for a direct connection to an outside air supply. See here for more details.
- Smoke Controlled Kit (cannot be retro fitted)
- Plinth heat shield to reduce clearances to combustibles behind the stove to 300mm
Boiler Options
- 10,000 Btu (domestic)
- 27,000 Btu (Baffle)
- 40,000 Btu (wraparound)
Colour Options
Range of colours available to suit your room, you can purchase spray paint etc.
Charcoal Grey
Conifer Green
Golden Fire Brown
Honey Glow Brown
Mahogany Brown
Metallic Black
Welsh Blue Slate
Clearview's Colour Disclaimer.
We have made every effort to reproduce colours on screen as accurately as possible. Unfortunately, we cannot guarantee an exact colour match. Colours will vary depending on your screen settings and resolution. In choosing your colour, we always recommend you request a free sample.

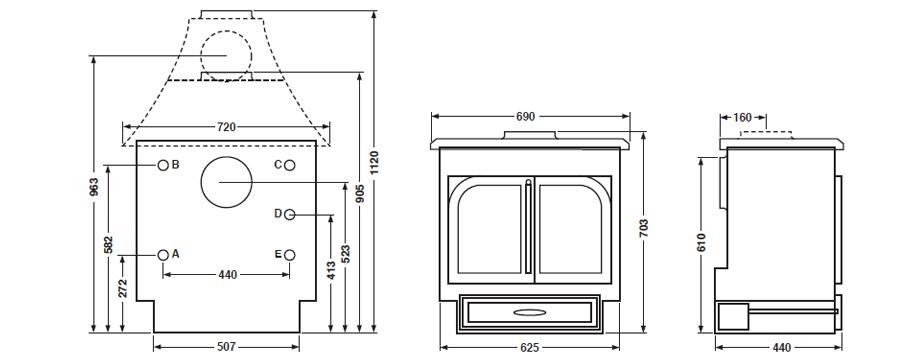

Technical Diagrams
Clearview 650
